Description

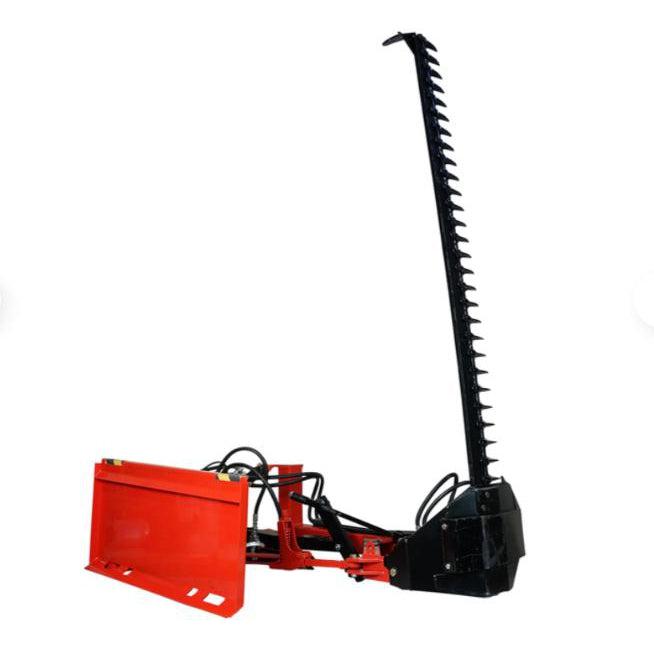

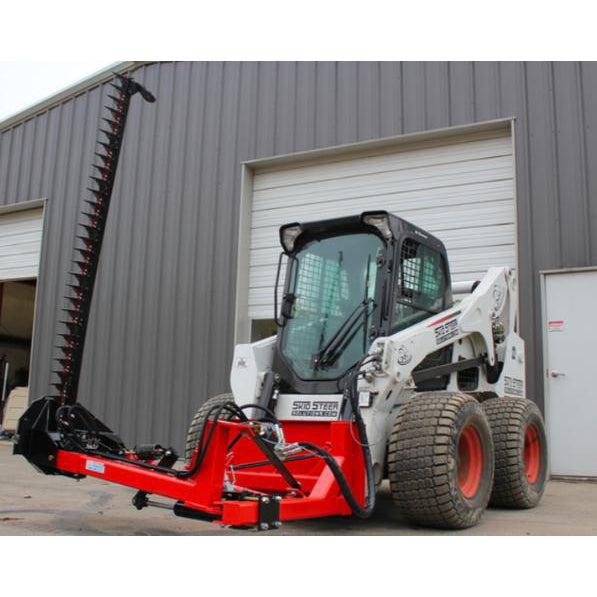

Razor Sickle Bar Mowing Attachment for Skid Steer Loaders.
- 7' and 9' foot cut width options
- Flow requirement: 15 GPM - 20 GPM @ 3000 PSI Rated
- 36 Replaceable Cutter Teeth (9 Foot)
- Can cut below 45 degrees flush to the ground and at 110 degrees to the ground allowing you to cut inside of ditches and along roadways
- Uses a heavy non-clogging style sickle
- Break-away bar so you do not damage the unit if you catch it on a rock or fence post
- Fully replaceable sickles - Bolt on
- Hydraulic lift and angle - 45 degrees to 110 degrees to the ground
Skid Steer Sickle Bar Mower Specification
Weight |
780 & 950 |
Length |
7" & 9" |
Number of Teeth |
28 |
Flow Rate |
15-20 GPM |
Cutting Angle |
110 Degrees to -45 Degrees |
Style of Teeth |
Top Serrated 2" Sickle Segment |
Drive System |

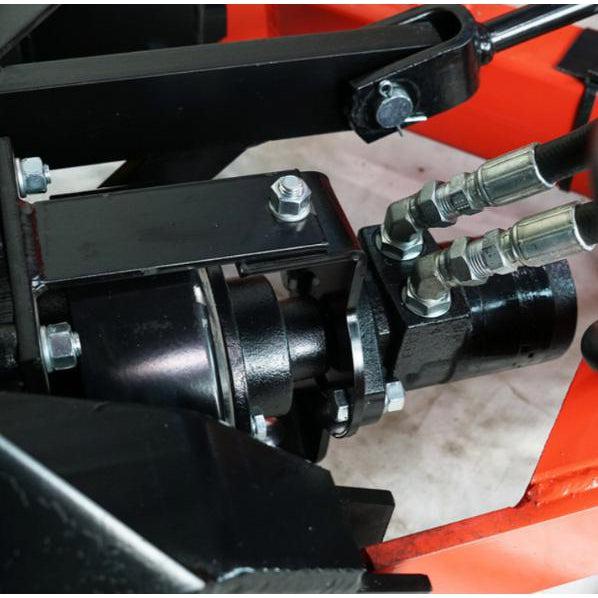

Hydraulic Motor |
Sickle Drive System |
Pitmanless Gearbox |
Cutting Capacity |
Up to 2" |
Flow Requirement |
15 GPM - 20 GPM |
Pressure Requirement |
2250 PSI - 3600 PSI |
Controls |
Electric Over Hydraulic Solenoid |
Electrical |
Bobcat 7, Cat/ASV 8, Others 14 Pin Compatible |
