MOTORIZED SKID STEER 3-POINT ADAPTER | ETERRA
MOTORIZED SKID STEER 3-POINT ADAPTER | ETERRA
Couldn't load pickup availability
Description

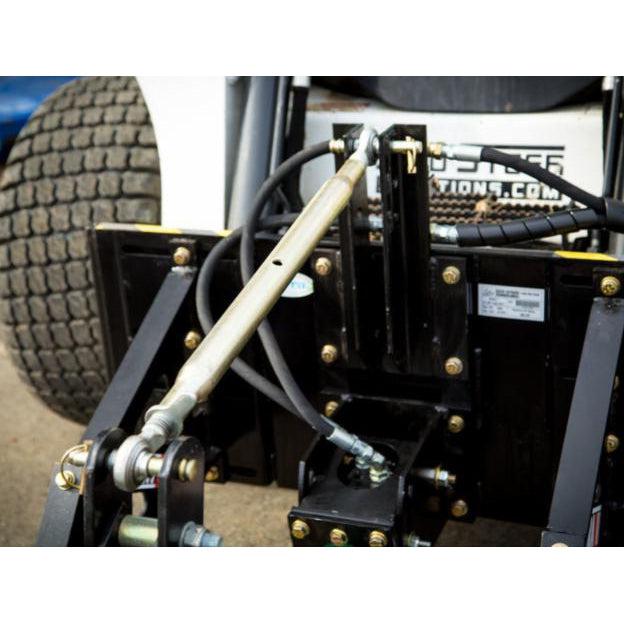

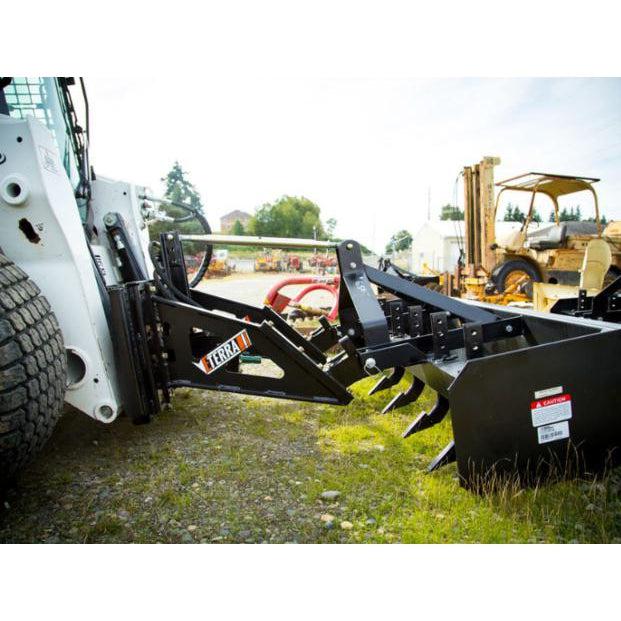

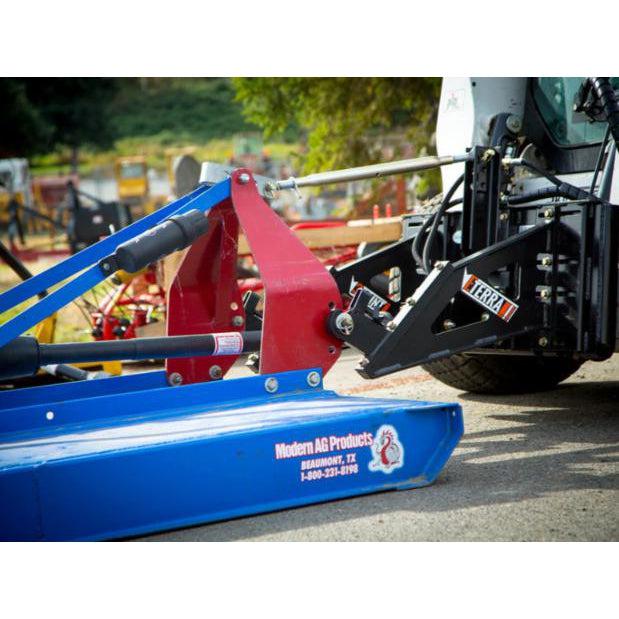

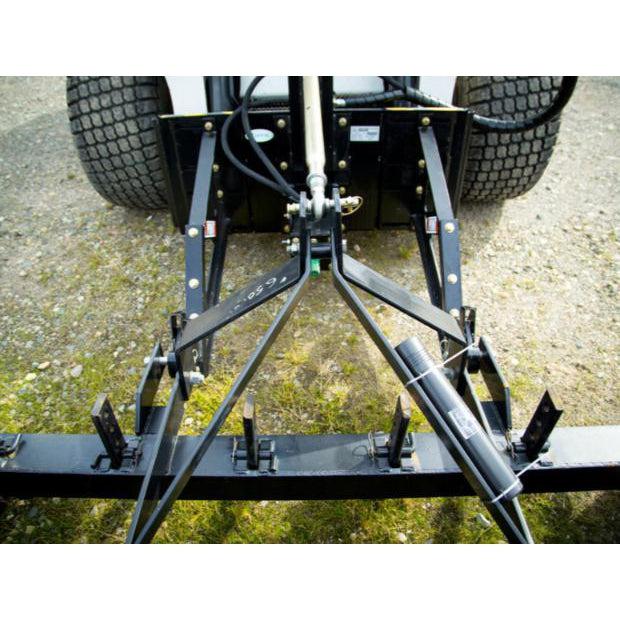

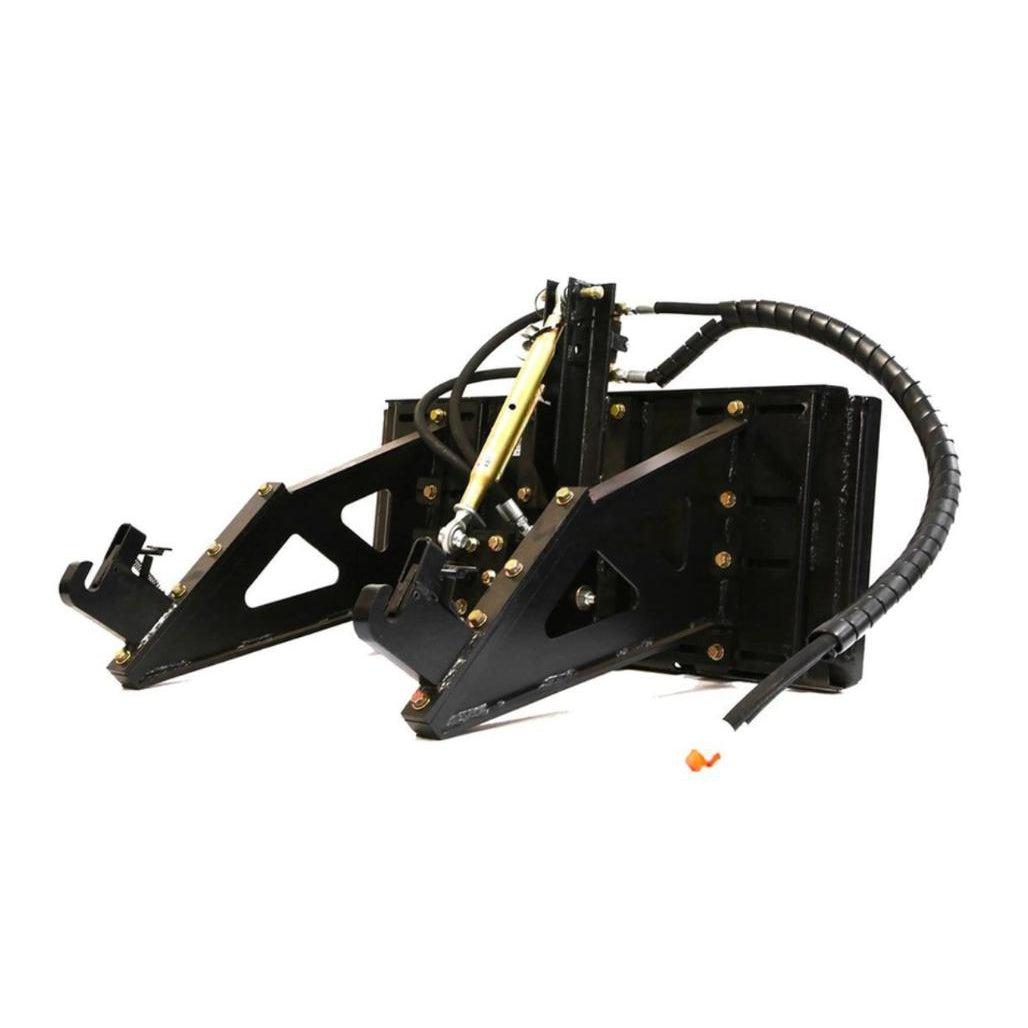

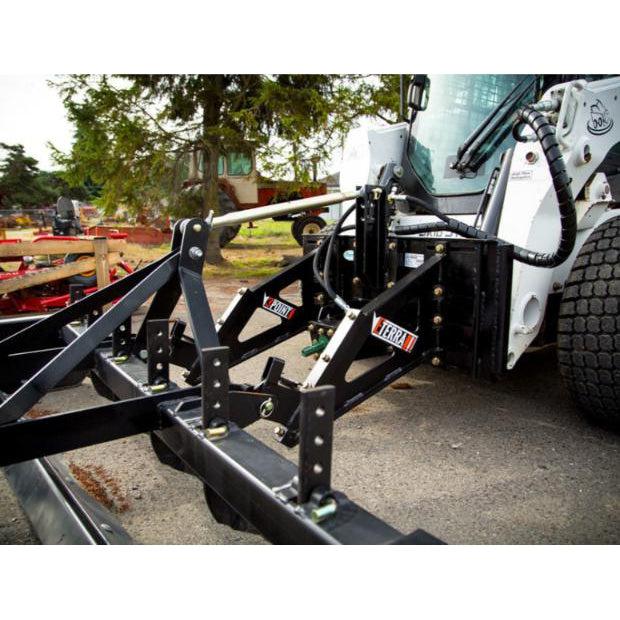

Eterra Skid Steer Motorized 3-Point Adapter.
- Adjustable lift arms to fit Category 0, 1 and 2 agricultural attachments

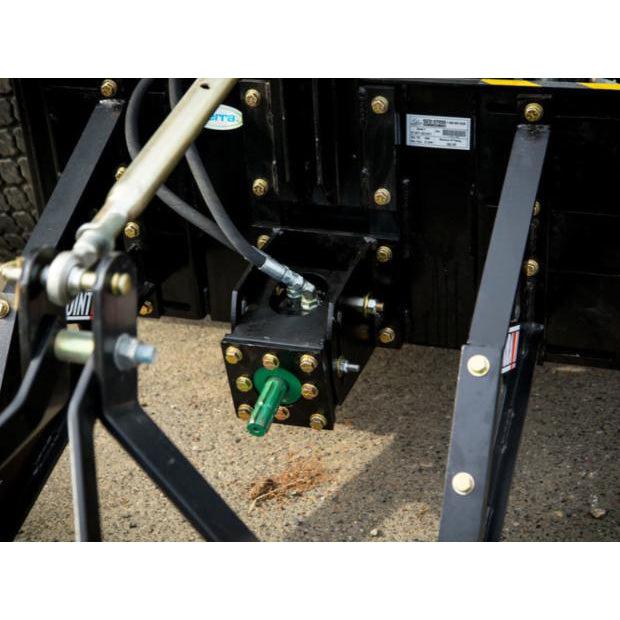

- Rotating motor mount to line up your PTO shaft (Extends the life of your U-Joints and maintains your horsepower)
- Quick Hitch allows you to attach from within the cab (No jockeying in and out)
- Bypass circuit/ check valve that protects your attachments from damage
- Modular and upgradeable, because a dynamic attachment like this has to be
- 2000 LB Lift Capacity
Specification
| Weight | 425 lbs |
| Hydraulic Flow Rating | 10-17GPM (80), 17-22GPM(125), 21-25GPM(160) |
| Shaft Speed Rotation | 540 RPM |
| Category 1 Arms | 7/8" Hitch Pins |
| Category 2 Arms | 1 1/8" Hitch Pins |
| Lift Arms | Adjustable Cat 0 - 2 |
| Back Plate | Heavy Duty Double 1/4" Steel |
| HP Rating Dependant on Flow/Pressure | 12 - 31 HP |
| Lift Capacity | 2000 lbs |
Questions & Answers
Have a Question?
-
What PTO HP output could be expected with a flow around 13 gpm from the unit?
The PTO (power take-off) HP output that can be expected from the Eterra Motorized Skid Steer 3-Point Adapter would depend on several factors such as the type of hydraulic motor used and the efficiency of the system.
However, as a rough estimate, a 13 gpm (gallons per minute) hydraulic flow from the skid steer could provide a PTO output of approximately 22 horsepower. Please note that this is an estimate, and the actual PTO output could vary slightly based on the specific configuration of the system, as well as other factors such as the hydraulic pressure, flow rate, and efficiency.
If you would like a quote, just respond with your shipping address, and I'll send one over! You can also call/text me at 240-301-1225.
Thanks!
Nathan
